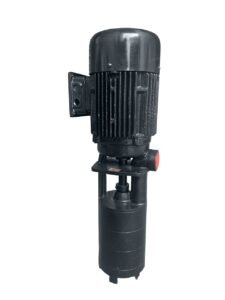

PHD Series & Double Stage Coolant Pump

Sr No	Pump Model	Motor HP(kW)	Outlet Pipe Size (mm)	Immersion Depth (mm)	Speed (rpm)	Stage	Flow At 2 Meter Head ± 15% (lpm)	Maximum Total Head at No Flow (meter)
PERFORMANCE DATA
01	SCP-13	0.75 (0.55)	25	220	2800	2	120	16
02	SCP-33	1.00 (0.75)	25	270	2800	3	120	16

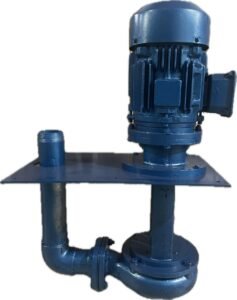

PERFORMANCE CHART OF PHD SERIES
MODEL	Outlet Size	KW/H p	Head in meters VS LPM
MODEL	Outlet Size	KW/H p	7	9	11	13	15	17	19	21	23	25	27	30
PHD-101	25 mm	0.37 KW I 0.50 HP	-	100	86	80	40	-	-	-	-	-	-	-
PHD-103	40 mm	0.55 / 0.75 HP	240	205	145	-	-	-	-	-	-	-	-	-
PHD-106	40 mm	0.75 KW / 1.0 HP	-	255	240	230	215	200	165	95	-	-	-	-
PHD-108	50 mm	0.75 KW / 1.0 HP	415	375	302	225	-	-	-	-	-	-	-	-
PHD-109	40 mm	1.10 KW / 1.50 HP	-	220	210	205	195	183	170	160	140	110	72	-
PHD-114	50 mm	1.50 KW / 2 HP	-	410	395	365	348	308	270	215	148	-	-	-
PHD-116	BO mm	1.50 KW / 2 HP	815	745	670	600	485	373	-	-	-	-	-	-
